𝗚𝗟𝗢𝗕𝗔𝗟 𝗙𝗟𝗨𝗜𝗗 𝗣𝗢𝗪𝗘𝗥 𝗦𝗬𝗦𝗧𝗘𝗠𝗦

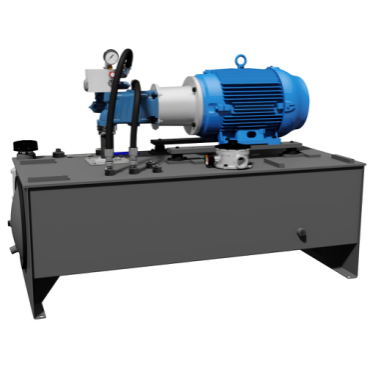

𝗛𝟭𝟱-𝟮𝟬𝟬𝗧-𝟲𝟬𝗛-𝗣𝗥

𝗛𝟭𝟱-𝟮𝟬𝟬𝗧-𝟲𝟬𝗛-𝗣𝗥

description

  • Versatile, highly reliable, on-the-shelf, hydraulic power units, which are totally self-contained in a compact package. These hydraulic power units are suitable for a wide variety of applications.

applications

  • Reversing applications
  • Variable-speed applications
  • Multiple motor drives or cylinder applications
  • High cycle, start and stop applications
  • Field convertible pressure and flow adjustment

features

  • High pressure piston pumps
  • Built-in relief and check valve
  • Liquid-filled pressure gauge
  • In-tank return filter
  • Filler/breather and cleanout covers
  • TEFC motors
  • Painted safety blue
Pump Type Piston Pressure Compensated
Pressure [Max] 2250 psi
Voltage Rating 230/460
GPM @ Speed 15 gpm @ 1750 rpm
GPM 15 gal/min @ 1750 rpm
Tank Size 60 gal
Width 27 in
Phase Three Phase
Height 34 in
Length 48 in
Weight 625.0 LB
